DN150单球不锈钢法兰橡胶补偿接头“内衬四氟”

产品分类:

产品简介:

淞江集团为众多化工企业提*不锈钢法兰橡胶接头产品,全部采用不锈钢304正材生产,支持光谱仪检测,假*赔十,以下是详细介绍。

Shanghai Songjiang shock absorber Group Co., Ltd. official website for you: [304] DN150 single ball stainless steel flange rubber joint "lined with tetrafluoroethylene" information, Songjiang group for a number of chemical enterprises to provide stainless steel flange rubber joint products, all of the stainless steel 304 production, support spectrometer testing, fake one compensation of ten, the following It's a detailed introduction.

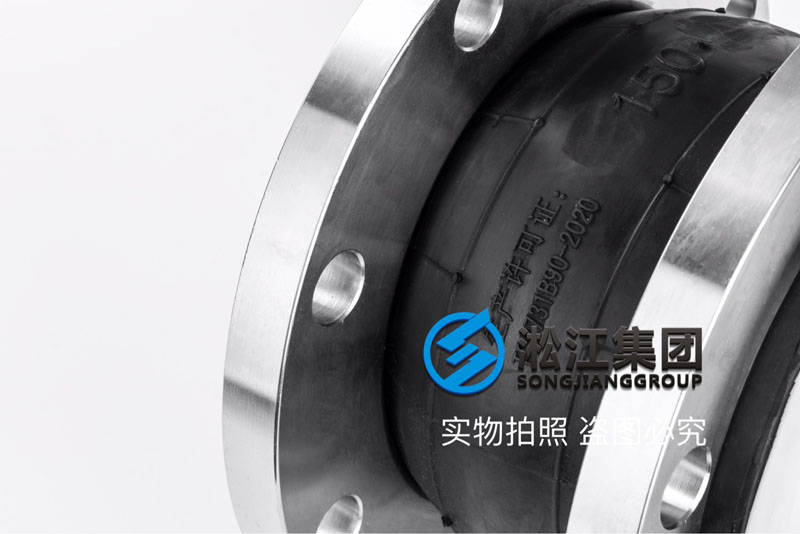

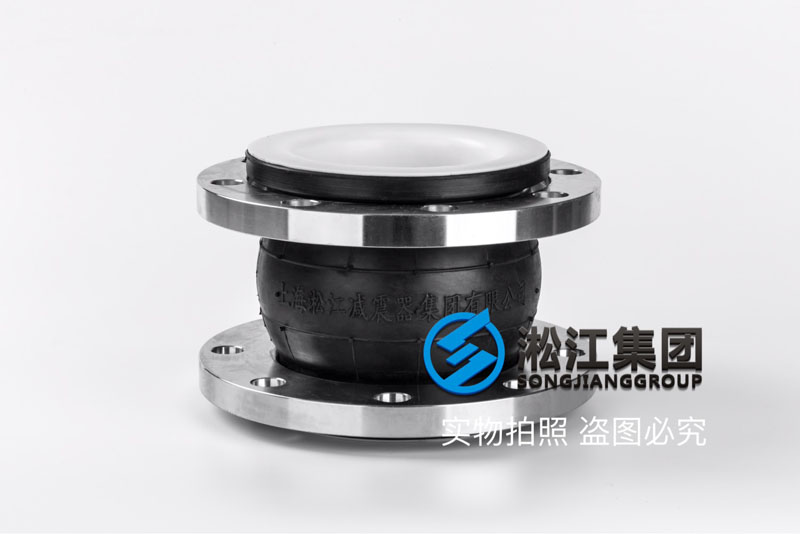

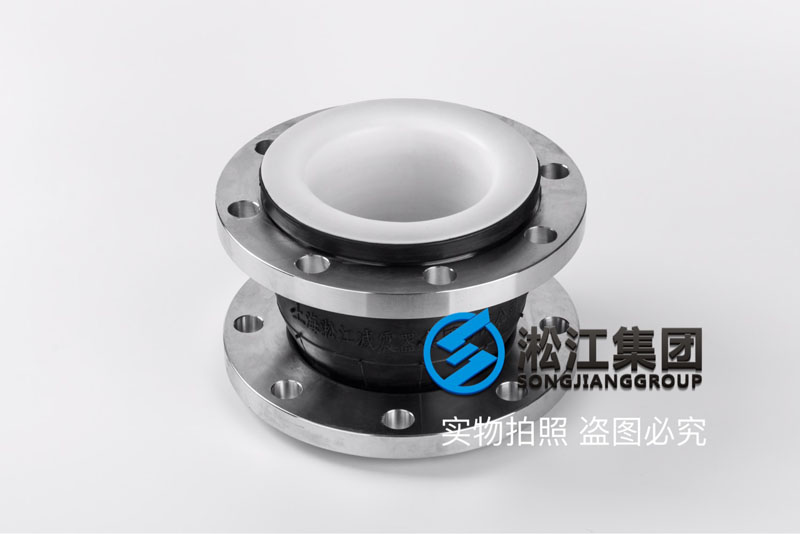

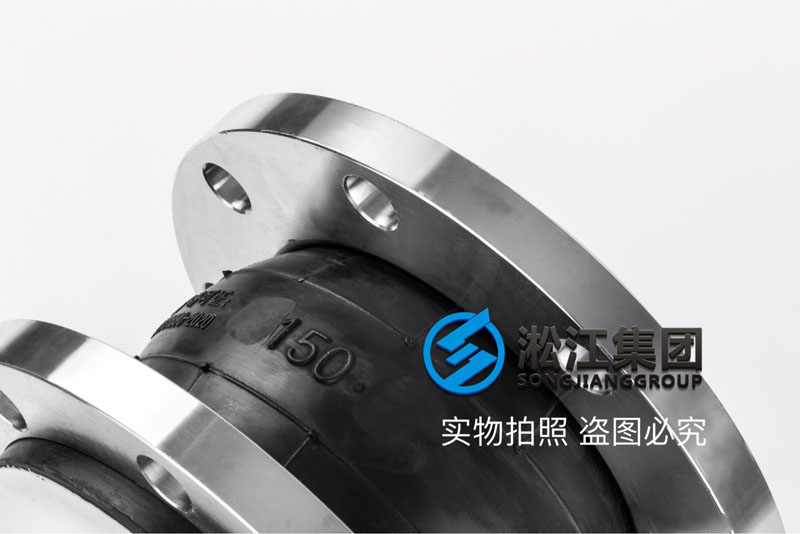

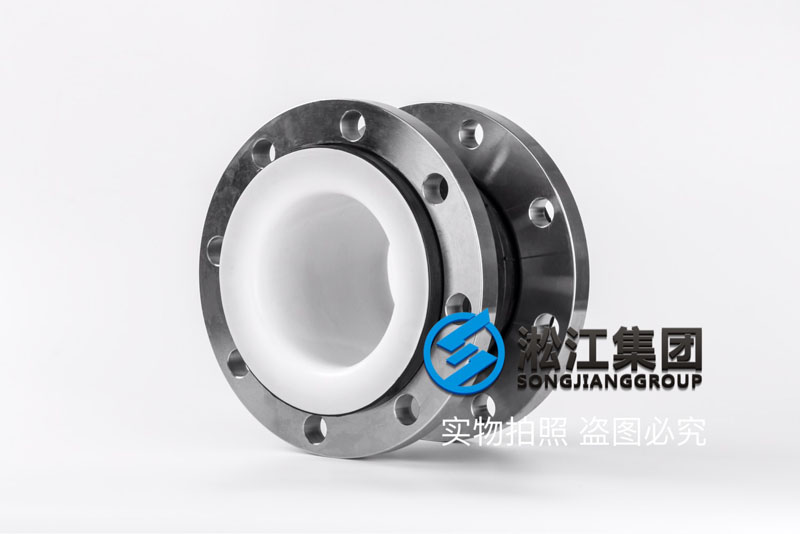

【304】DN150单球不锈钢法兰橡胶接头“内衬四氟”



















名称:单球不锈钢法兰橡胶接头

型号:KXT-304-PTFE

压力:PN16

口径:DN150

长度:180mm

轴向压缩:18mm

轴向拉伸:10mm

横向位移:12mm

偏向角度:15°

法兰材质:不锈钢304(支持光谱仪检测,假*赔十。)

橡胶材质:

内衬材质:聚四氟乙烯

适用介质:强酸碱

生产厂家:上海淞江减震器集团有限公司

附带证书:合格证、质保书、检测报告、材质证明、TS压力管道生产许可证等。

Name: single ball stainless steel flange rubber joint
Model: KXT-304-PTFE
Pressure: PN16
Caliber: DN150
Length: 180mm
Axial compression: 18mm
Axial tension: 10mm
Lateral displacement: 12mm
Angle of bias: 15 degrees
Flange material: stainless steel 304 (support spectrometer test, false one compensate ten).
Rubber material: natural rubber (natural rubber of Songjiang group) adopts Dongfeng 1# rubber, with a content of about 46%, material proof, third party content testing report, and product inspection report.
Lining material: polytetrafluoroethylene
Suitable medium: strong acid and alkali
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Certificate: certificate, warranty, inspection report, material certificate, TS pressure pipe production permit, etc.



单球不锈钢法兰橡胶接头主要用于管道减少震动、降低噪音、伸缩性好,使用方便.单球橡胶接头又称单球橡胶软接头,单球软接头,减振器、管道减震器、避震喉等,是*种高弹性、高气密性,耐介质性和耐气候性的管道接头。该产品利用了橡胶的弹性、高气密性、耐介质性、耐候性和耐辐射性等有点,采用高强度、冷热稳定性强的聚酯帘子布斜交与之复合后,经过高压、高温模具硫化而成.单球橡胶接头是由织物增强的橡胶件与平形活接头,它是*种高弹性、高气密性、耐介质性和耐气候性的管道接头。

Single ball stainless steel flange rubber joint is mainly used in pipeline to reduce vibration, noise reduction, good scalability, and easy to use. Single ball rubber joint is also called single ball rubber soft joint, single ball soft joint, shock absorber, pipe shock absorber, shock absorber and so on. It is a high elastic, high air tightness, medium resistance and climate resistance pipe joint. The product uses the elastic, high air tightness, medium resistance, weatherability and radiation resistance of the rubber. The polyester cord fabric with high strength and cold and hot stability is mixed with it and is vulcanized by high pressure and high temperature die. The single ball rubber joint is a rubber piece strengthened by the fabric and a flat live joint. It is a kind of high quality. Flexible, high air tightness, medium resistance and weather resistant pipe joints.
