DN100单球不锈钢法兰橡胶补偿接头“三元乙丙”

产品分类:

产品简介:

淞江集团为化工企业提*耐酸碱橡胶软连接产品,主要采用聚四氟乙烯材料作为内层保护,起到耐酸碱的作用,而且也有减震和降噪的作用。

Shanghai Songjiang shock absorber Group Co., Ltd. official website for you: [304] DN100 single ball stainless steel flange rubber joint "three yuan ethylene propylene" information, Songjiang group for chemical enterprises to provide acid and alkali resistant rubber soft connection products, mainly using polytetrafluoroethylene material as the internal protection, as well as acid and alkali resistance, but also The effect of shock absorption and noise reduction.


*内橡胶接头行业TS压力管道生产许可单位,TS编号:TS2731B90-2020
Domestic rubber joint industry TS pressure pipe production license unit, TS number: TS2731B90-2020

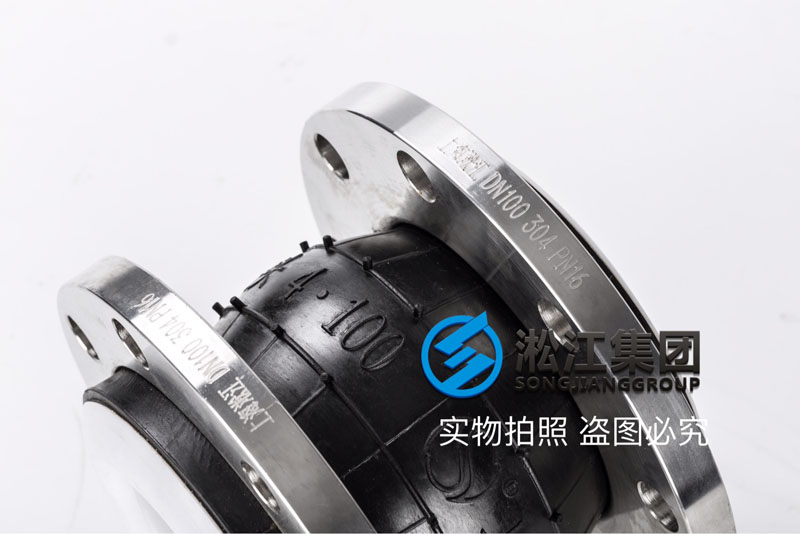

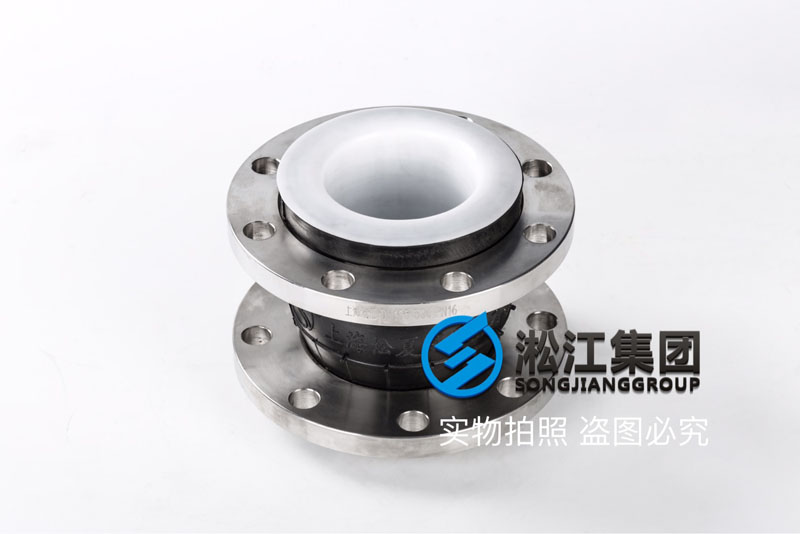

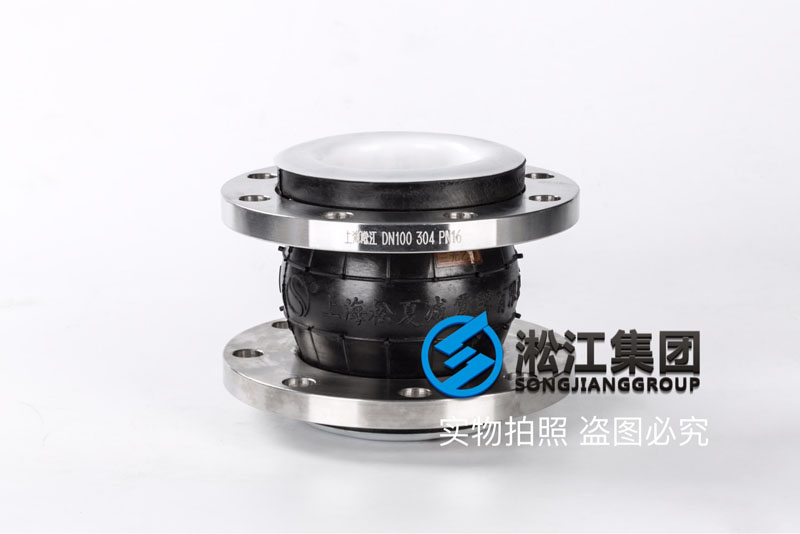

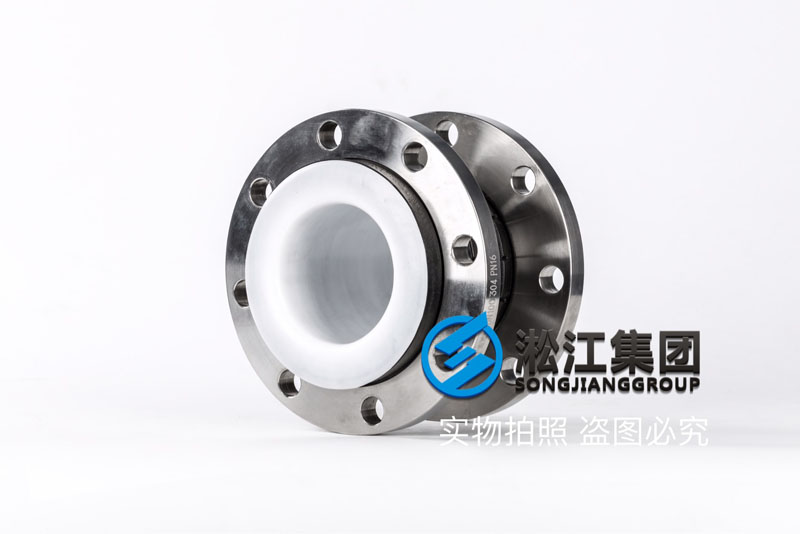

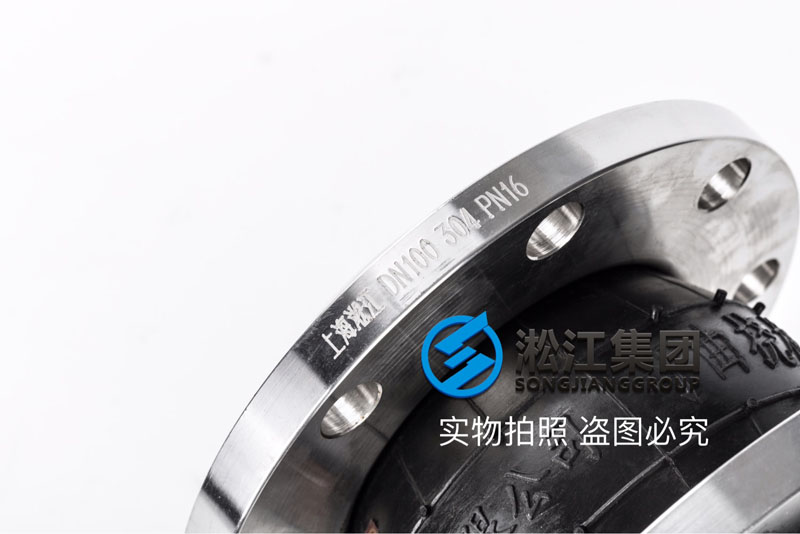

【304】DN100单球不锈钢法兰橡胶接头“三元乙丙”


















名称:单球不锈钢法兰橡胶接头
型号:KXT-304-EPDM-PTFE
口径:DN100
压力:PN16
长度:150mm
伸长:10mm
压缩:18mm
横向位移:12mm
偏转角度:15°
法兰材质:不锈钢304(不锈钢304正材,8个镍以上,支持光谱仪检测,假*赔十。)
橡胶材质:三元乙丙橡胶,淞江集团所有三元乙丙橡胶全部采用日本三井4045,含量达到46%左右,有三方含量检测报告。
使用温度:-10° ~ 120°
法兰标准:GB/T9119-2000

相关证书:合格证、质保书、上海市质量技术监督局检验报告、*家型式试验中心性能检测报告、ISO9001-2005证书、材质证明证书、使用说明等。

Name: single ball stainless steel flange rubber joint
Model: KXT-304-EPDM-PTFE
Caliber: DN100
Pressure: PN16
Length: 150mm
Elongation: 10mm
Compression: 18mm
Lateral displacement: 12mm
Deflection angle: 15 degrees
Flange material: stainless steel 304 (stainless steel 304 solid material, 8 nickel above, support spectrometer test, fake one ten).
Rubber material: three meta ethylene propylene rubber, Songjiang group of all three ethylene propylene rubber all use Japanese Mitsui 4045, the content of about 46%, there is a three party content test report.

Flange standard: GB/T9119-2000
Relevant certificates: Certificate of qualification, quality assurance book, inspection report of Shanghai quality and Technical Supervision Bureau, performance test report of national type test center, ISO9001-2005 certificate, certificate of material proof, use description and so on.

性能*点:
1、体积小、重量轻、弹性好、安装维修方便。
2、安装时可产生横向、轴向、角向位移,不受管道不通心,法兰不平行的限制。
3、工作时可降低结构传递噪音,吸振能力强。
4、具有耐压高、弹性好、位移量大、平衡管道偏差、吸收振动、降低噪音效果好、安装方便,还可以大大降低管道系统的震动和噪声,可从根本上解决各类管路的接口位移,轴向伸缩及不同心度等问题.橡胶原材料属于.性橡胶,密封性好,重量轻,安装维修方便、使用寿命长,但避免与锋利金属器械接触,以免刺破橡胶管体。

Performance characteristics:
1, small volume, light weight, good elasticity, easy installation and maintenance.
2. When installing, lateral, axial and angular displacement can be generated, which is not restricted by the unsmooth core of the pipeline, and the flange is not parallel.
3, when working, it can reduce the transmission noise and strong vibration absorption ability.
4, with high pressure, good elasticity, large displacement, balance pipe deviation, absorption and vibration, good effect of noise reduction and easy installation, it can also greatly reduce the vibration and noise of the pipeline system. It can fundamentally solve the problems of the interface displacement, axial expansion and dissimilarity of various pipelines. Rubber raw material belongs to the rubber, seal. Good quality, light weight, easy installation and maintenance, long, but avoid contact with sharp metal tools, so as not to pierce the rubber tube.
